Straight
Moldboards
Straight moldboards have an integral “Built-In Baffle”
and are available in uniform heights of 30", 36", 42",
or 48", in lengths of 9', 10', 11', or 12'. Various reversing combinations
include four power reversing models and one manual reversing model.
Click to view a printable Straight
Plow Literature/Specs.pdf

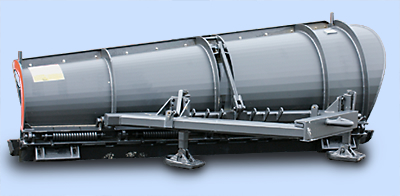

Tapered Moldboards
Tapered moldboard snowplows are designed for the higher speed method
of plowing. Offered in cutting edge lengths of 10', 11', or 12' with
three different intake and discharge heights. Moldboards are available
with an integral “Built-In Baffle.” May be selected as a
fixed one way manual reversing or power reversing model.
Click to view a printable Tapered
Plow Literature/Specs.pdf

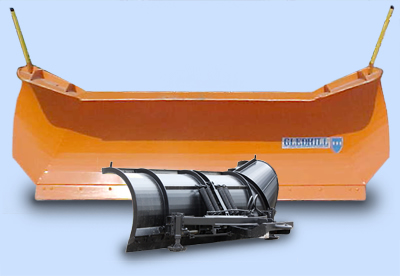

Jetstream™ Snowplows
Gledhill has perfected the art of throwing snow with the “Jetstream”™
model snowplow. Designed with two symmetrical inverted funnel-shaped
discharge ears to pick up snow and throw it far from the road. Able
to discharge snow right or left. Gledhill is the company that originally
designed the “Jetstream”™ style plow and it is engineered
to be the best. We have “over-speced” all critical components
to easily handle whatever winter conditions you encounter. The “Jetstream”™
plow is available in 10', 11', and 12' lengths with three (3) different
heights. A one ear “Jetstream”™ is also available.
Click to view a printable
Jetstream™ One-Ear Plow Literature/Specs.pdf
Click to view a printable
Jetstream™ Two-Ear PlowLiterature/Specs. pdf

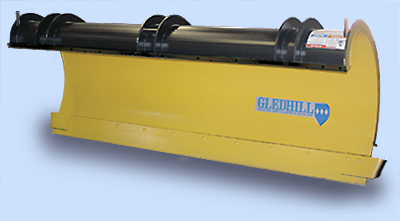

Full Roll Straight Moldboard
Gledhill “Full Roll” Straight Moldboard Reversible Plows
are designed for an effective means of snow removal. They are extremely
efficient in urban environments. Our proven construction method utilizes
a paneled moldboard that provides additional rigidity and efficient
snow breakage for ease of snow flow. Moldboards are available in lengths
of 10', 11', and 12' and 42' in height. Reversing tables are available
in three power reversible models: the PR2 series, the PCL Series, and
the PRT Series. A manual reversible model, the RH Series, is also available.
Click to view a printable
Full Roll Straight Moldboard Literature/Specs. pdf

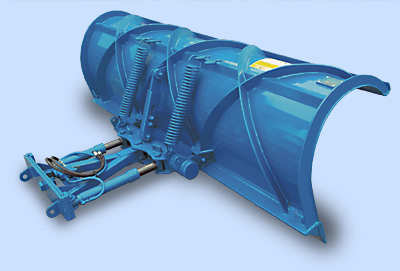

Husky™ Snowplow
Gledhill now offers a plow and hitch for most 1-ton and
1-1/2 ton series trucks. The Husky is 32" high and is available
in three (3) different lengths: 8', 8-1/2' and 9'. Heavy duty construction
can be found throughout the plow and the quick pin hitch. The “X”
bracing on the moldboard provides extra strength for municipal applications.
The top curvature of the plow is rolled forward to help deflect snow
down and away from the windshield, greatly improving vision and safety.
The Husky is hydraulically reversible. Computer designed and road proven,
the Husky plow has the strength to push on!
Click to view a printable
Husky™
Plow Literature/Specs. pdf
|
